When it comes to enabling HEIMDAL's BitLocker functionality in an environment, there are several issues that might occur if the requirements are not met.

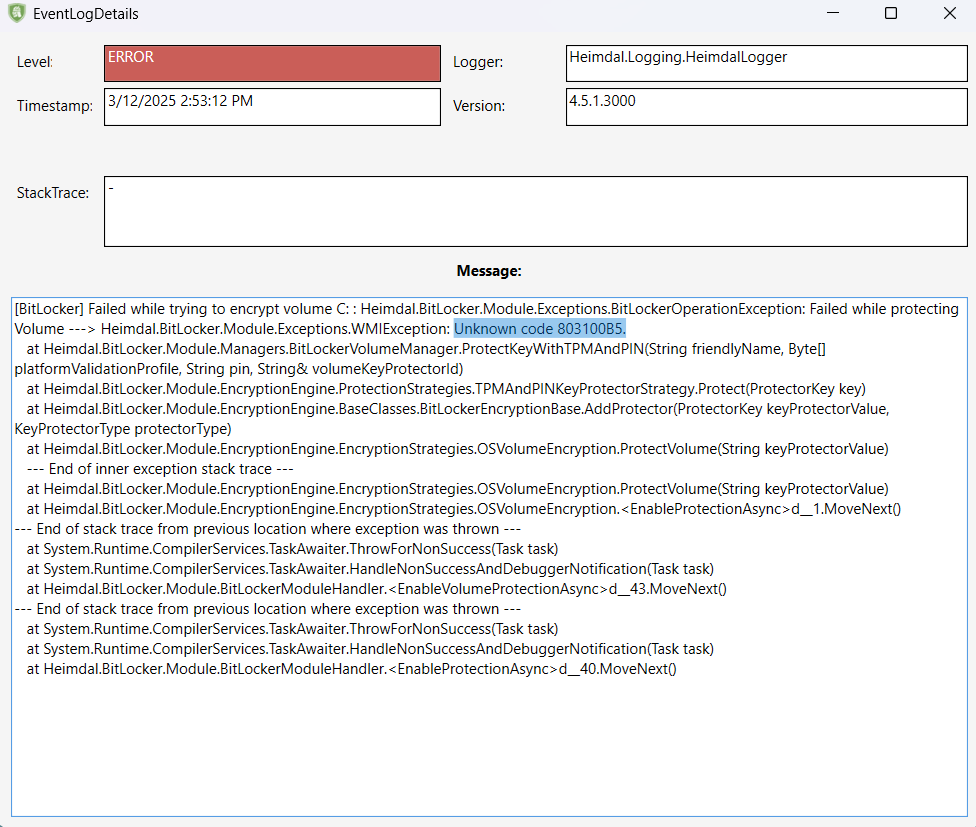

BEHAVIOR: I want to enable BitLocker on an OS Volume with TPMandPIN, but it does not work. I am not getting any pop-up to set a PIN. In the HEIMDAL Dashboard I'm seeing the following error (which can be found in the HeimdalLogs):
SOLUTION: you need to enable Require additional authentication at startup in the Local Computer Policy.

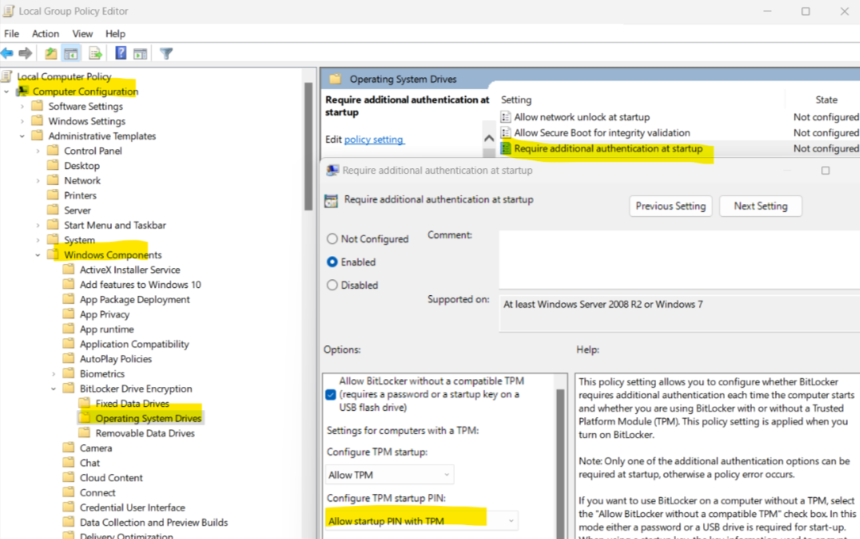

1. Open the gpedit.msc (as Administrator), navigate to Computer Configuration -> Administrative Templates -> Windows Components -> BitLocker Drive Encryption -> Operating System Drives -> Require additional authentication at startup:
2. Enable the policy, just like in the snippet below.
3. Restart the computer, allow it 5 minutes to run, and the HEIMDAL Agent should pop up a PIN toaster to set your PIN. The OS Volume encryption will start afterward.
BEHAVIOR: BitLocker is unavailable, please turn on BitLocker Drive Encryption feature from Windows features or check with your administrator pop-up is being displayed by the Heimdal Agent:
INVESTIGATION: After checking the status of the BitLocker on the machine using the command "manage-bde -status" if the output is an invalid namespace error it indicates that the namespace you are trying to modify is not registered or it is missing registration and does not exist in WMI.
SOLUTION: To resolve this problem, re-register the BitLocker WMI (win32_encryptablevolume) class.

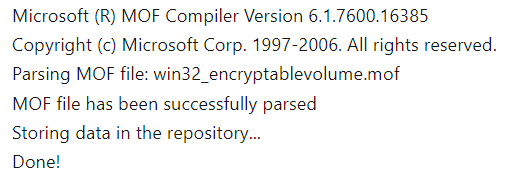

mofcomp.exe c:\windows\system32\wbem\win32_encryptablevolume.mofBitLocker checks if the system is a tablet. If it is a tablet, then BitLocker displays the above error message when trying to use a PIN protector. BitLocker doesn't check if the system supports a pre-boot keyboard. Some tablets may have a BIOS that supports a software keyboard. For example, the Dell Venue 11 Pro, Surface Pro 3, and Surface Pro 4 support entering a BitLocker PIN at pre-boot with a BIOS software keyboard. Some tablets may have detachable keyboard that works during pre-boot. For example, the Surface Pro 2 with firmware update from March 2014, Surface Pro 3, and Surface Pro 4 support entering a BitLocker PIN at pre-boot with their detachable keyboards. If the tablet does not support a BIOS software keyboard or a detachable keyboard that works during pre-boot, then configuring the below policy will require a USB keyboard be plugged into the tablet to enter a BitLocker PIN at pre-boot. Contact the OEM to inquire about tablet support for this specific scenario.
SOLUTION:
- Go to Computer Configuration > Administrative Templates > Windows Components > BitLocker Drive Encryption (may also be found in newer devices in Operating System Drives)
- Set the Enable use of BitLocker authentication requiring preboot keyboard input on slates policy to Enabled.
- Run gpupdate /force from the command line.
Configure the PIN, and the Agent will immediately prompt for a required reboot. Once the system restarts, the PIN will work, and the module will function as intended.
